| GENERAL |

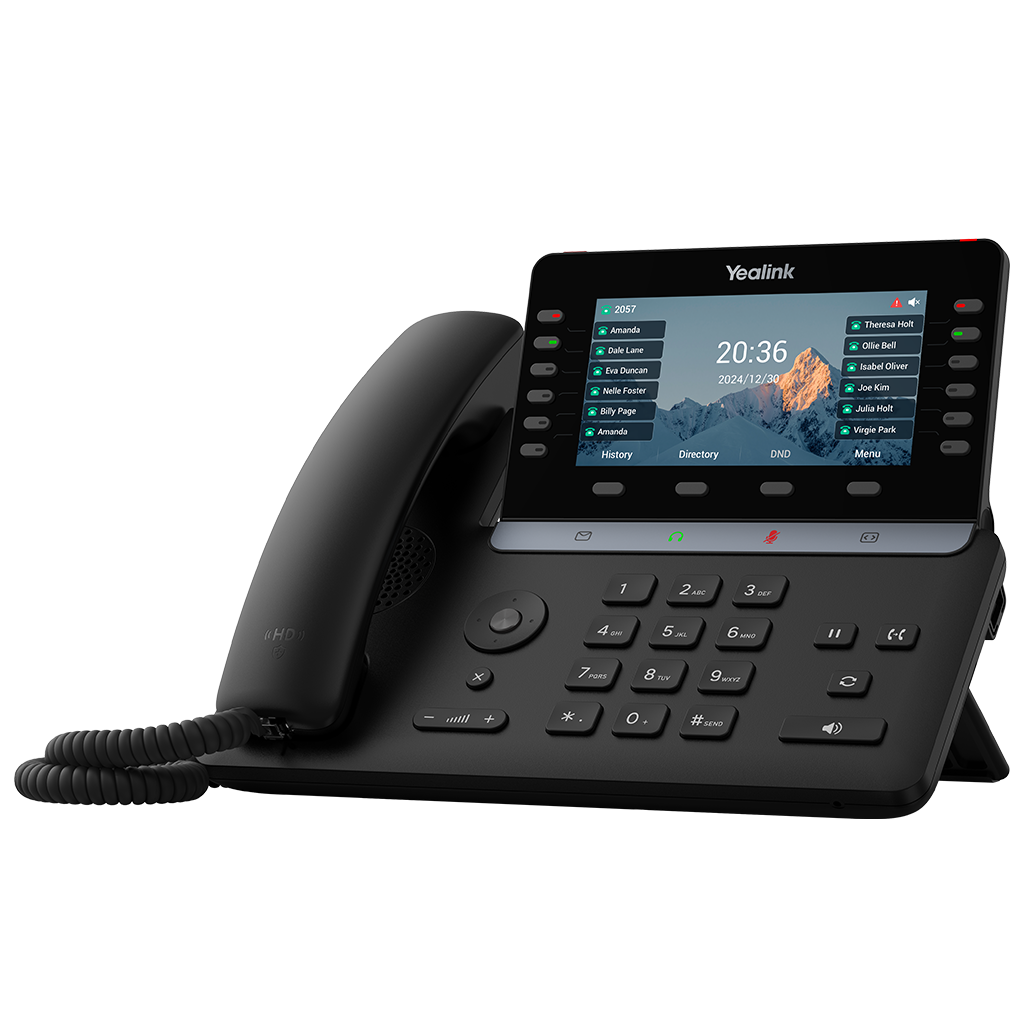

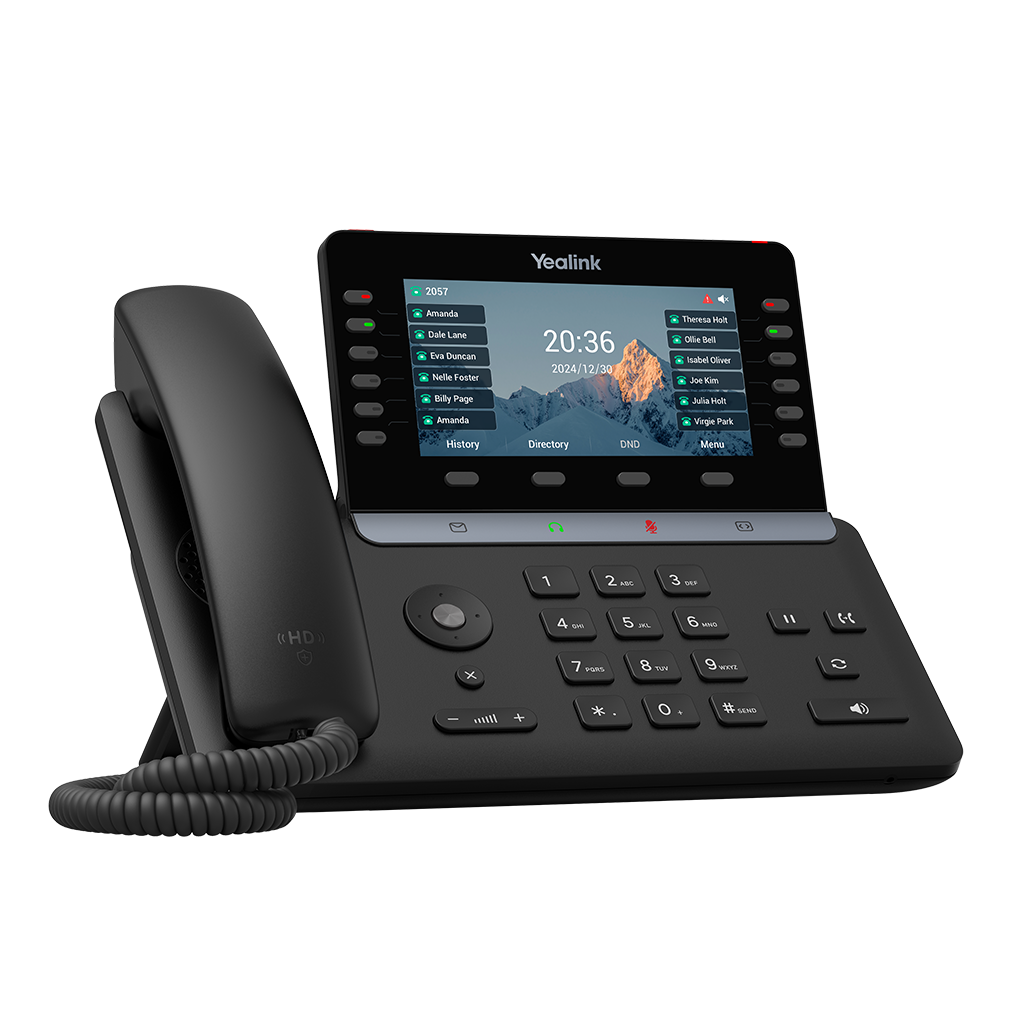

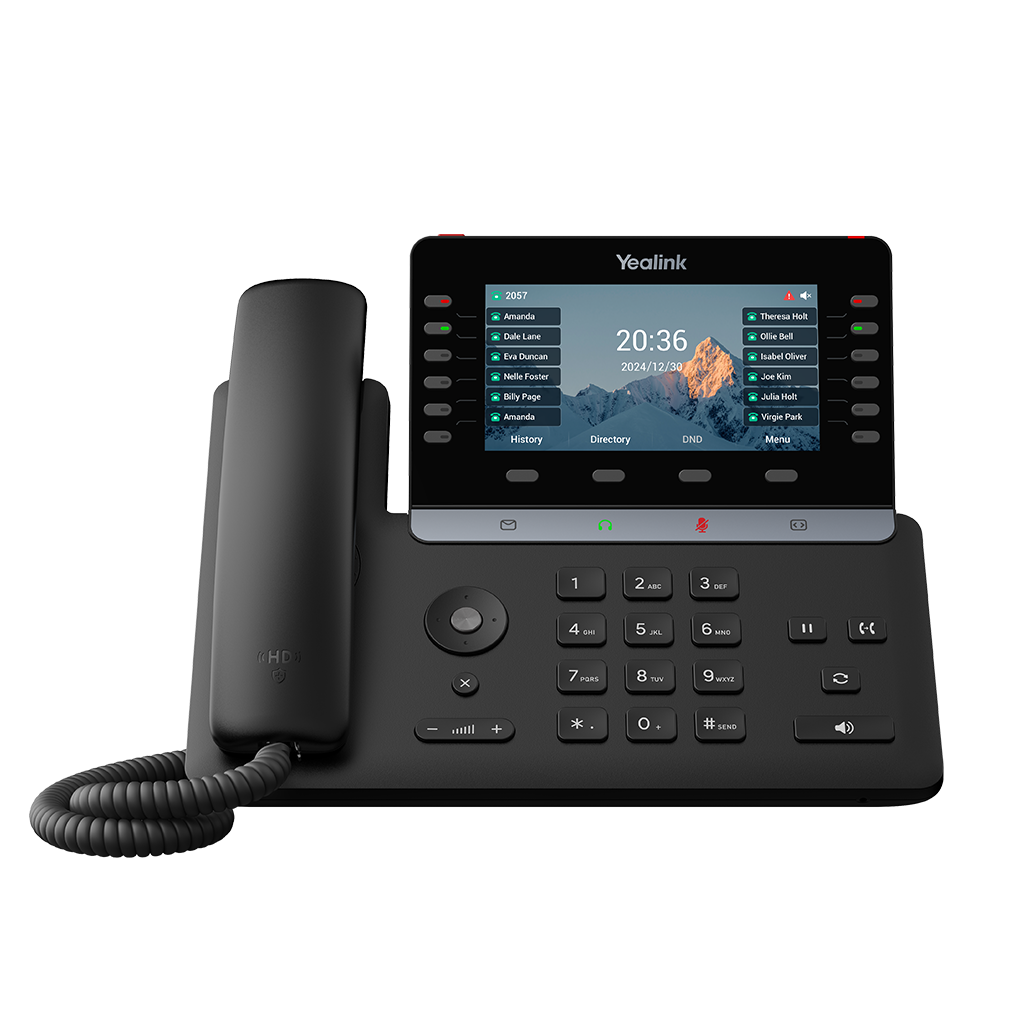

- Model: SIP-T85W
- Part number: 1301220
|
| AUDIO FEATURES |
- HD voice: HD handset, HD speaker
- Hearing aid compatible (HAC) handset
- Acoustic Shield
- Smart Noise Filtering
- Audio codec: AMR-WB (optional), G.722
- Narrowband codec: AMR-NB (optional), PCMU (G.711μ), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC
- DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
- Full-duplex hands-free speakerphone with AEC
- VAD, CNG, AEC, PLC, AJB, AGC
|
| DISPLAY AND INDICATOR |
- 5.5″ 960 x 480 resolution screen
- 16-bit depth color
- LED for call and message waiting indication
- Dual color (red or green) illuminated LEDs for line status information
- Intuitive user interface with icons and soft keys
- Multilingual user interface
- Caller ID with name, number, and photo
- Wallpaper
- Screensaver
- Supports both dark and light themes
|
| PHONE FEATURES |
- 16 VoIP accounts
- One-touch speed dial, hotline, mute, DND
- Call hold, call forward, call waiting, call transfer
- Group listening
- Emergency call
- Redial, call return, auto answer
- Direct IP call without SIP proxy
- Ring tone selection/import/delete
- Set date time manually or automatically
- Dial plan, XML Browser, action URL/URI
- RTCP-XR
- XML Browser, XML Push
- Custom DSS Key
- Accessibility features
|
| DIRECTORY |
- Local phonebook up to 1000 entries
- Blocklist
- XML/LDAP remote phonebook
- Smart dialing
- Phonebook search/import/export
- Call history: all records/dialed/received/missed/forwarded
|
| IP-PBX FEATURES |
- Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
- Anonymous call, anonymous call rejection
- Message Waiting Indicator (MWI)
- Voice messages, call parking
- Call pickup, intercom, multicast
- Music on hold
- Call recording, mobile office, chief assistant
- Server-based recording function
- Visual mailbox user interface
|
| FEATURE KEYS |
- 12 linekeys with LED buttons (up to 60 dsskeys, 5 pages)
- 4 touch buttons: message, headset, mute, pagination (mute/headset/pagination button with indicator light)
- 4 function keys: call hold, call transfer, redial, hands-free
- 2 volume adjustment buttons
- 6 navigation keys
|
| INTERFACE |
- Dual-port Gigabit Ethernet
- 2 x USB port (Type-USB A, Type-USB C)
- USB flash drive
- Connecting a USB headset
- Connecting to the color screen expansion station
- Wireless Headset Adapter EHS40
- 1 x Security keyhole
- 1 x RJ9 (4P4C) handset port
- 1 x RJ9 (4P4C) headset port
- 1 x 5V power port
- Dual USB ports (2.0 compliant)
- Support Yealink Bluetooth headset BH71/BH71 Workstation/BH71 Workstation Pro/BH72/BH76/UH38 through BT51
- DECT wireless headset (Yealink WH62 Portable/WH63 Portable)
- USB call recording through USB flash drive
- USB headset
- Expansion Module EXP55
- Wireless Headset Adapter EHS40
- USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone/wireless headset UH38, USB connectivity to Yealink wired headset UH34/UH36/UH37:
- Basic functions: answer/end, call mute
- Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple call control
|
| MANAGEMENT |
- Configuration: browser/phone/auto-provision
- Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment
- Auto-provision with PnP
- Broadsoft device management
- Zero-sp-touch, TR-069
- Phone lock for personal privacy protection
- Reset to factory, reboot
- Package tracing export, system log
- Support Yealink Device Management Platform (YDMP/YMCS)
|
| NETWORK AND SECURITY |
- Built-in Dual-Band Wi-Fi:
- Network standard: IEEE802.11a/b/g/n/ac/ax
- Frequency band: 2.4GHz/5.0GHz
- Built-in Bluetooth 5.0:
- Connecting Bluetooth Headset
- Connect your phone
- Connect headphones and phone at the same time
- Connect to PC as PC peripheral
- IPv4/IPv6
- SIP v1 (RFC2543), v2 (RFC3261)
- Call server redundancy supported
- NAT traversal: STUN mode
- Proxy mode and peer-to-peer SIP link mode
- IP assignment: static/DHCP
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- UDP/TCP/DNS-SRV (RFC 3263)
- QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
- Support SRTP protocol
- Support TLS1.3
- HTTPS Certificate Management
- Configuration file encryption (AES256)
- Supported authentication mechanisms: MD5/SHA1/SHA224/-SHA256/SHA384/SHA512
- OpenVPN, IEEE802.1X, L2TP VPN
- LLDP/CDP/DHCP VLAN
- ICE
- WPA2/WPA3
- Secure Boot
- GARP (Generic Attribute Registration Protocol)
- Linux 6.1 version
- TEE hardware encryption solution
|
| OTHER PHYSICAL FEATURES |
- Color: Classic Grey
- Wall mountable (optional)
- External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output
- USB output currency: 5V 1A
- Power consumption (PSU): 1.8W-3.8W
- Power consumption (PoE): 2.3W-4.7W
- Dimension (W*D*H*T): 266 mm*226 mm*85 mm*54 mm
- Operating humidity: 10 – 95%
- Operating temperature: -10 to 45°C (+14 to 113°F)
- Storage temperature: -30 to +70°C (-22 to +158°F)
|
| PACKAGE FEATURES |
- Package content:
- Yealink SIP-T85W IP phone
- Handset with handset cord
- Ethernet Cable (2m CAT5E UTP Cable)
- Stand
- Quick Start Guide
- Qty/CTN: 3 PCS
- N.W/CTN: 4.154 kg
- G.W/CTN: 4.636 kg
- Giftbox size: 285 mm*253 mm*104 mm
- Carton Meas: 324 mm* 260 mm*300 mm
|
